eZOutdoor for BESS
eZOutdoor is a "Custom-Tailored Solution."
Please consider your installation environment, load capacity, and intended use, then contact our sales team for consultation.
- Application : Energy Storage System
- Use : For battery storage in solar power facilities
- Features : Rapid exhaust system in case of chiller failure, flame retardant material, automatic fire extinguisher, etc.
To ensure stable operation and longevity of the battery, the interior is sealed and isolated from external influences such as extreme cold, extreme heat, dust, and moisture, and maintains the proper temperature with minimal power, including eco-friendly cooling and heating devices.
Outdoor cabinet to ensure maximum availability of ESS, including automatic fire extinguishing system, rapid exhaust system and other accessories to prevent fire accidents.
SPECIFICATION
| Enclosure (Cabinet) | External Dimension | 1,198 ( H) * 1,250 (W) * 1,313 (D) | Coustomizable |
| Internal Dimension | 978 ( H) * 1,224 (W) * 885 (D) | ||
| Material | Cold Roll Sheet | ||
| Weigh | 340 Kg | ||
| Air Conditioner | Capacity | 590 W | Coustomizable |
| Input Power (Rated current) | 220V / 60Hz (2.0 A) | ||
| Heater | Capacity | 600W | |
| Input Power (Rated current) | 220V / 60Hz (3.0 A) | ||
| Heat Exchanger | Capacity | 12W / *K | |
| Input Power (Rated current) | 220V / 60Hz (0.5 A) | ||
| Fire Extinguish | Volume | 2.67 m3 | Stand alone self-operating |
| etc |
| Coustomizable |

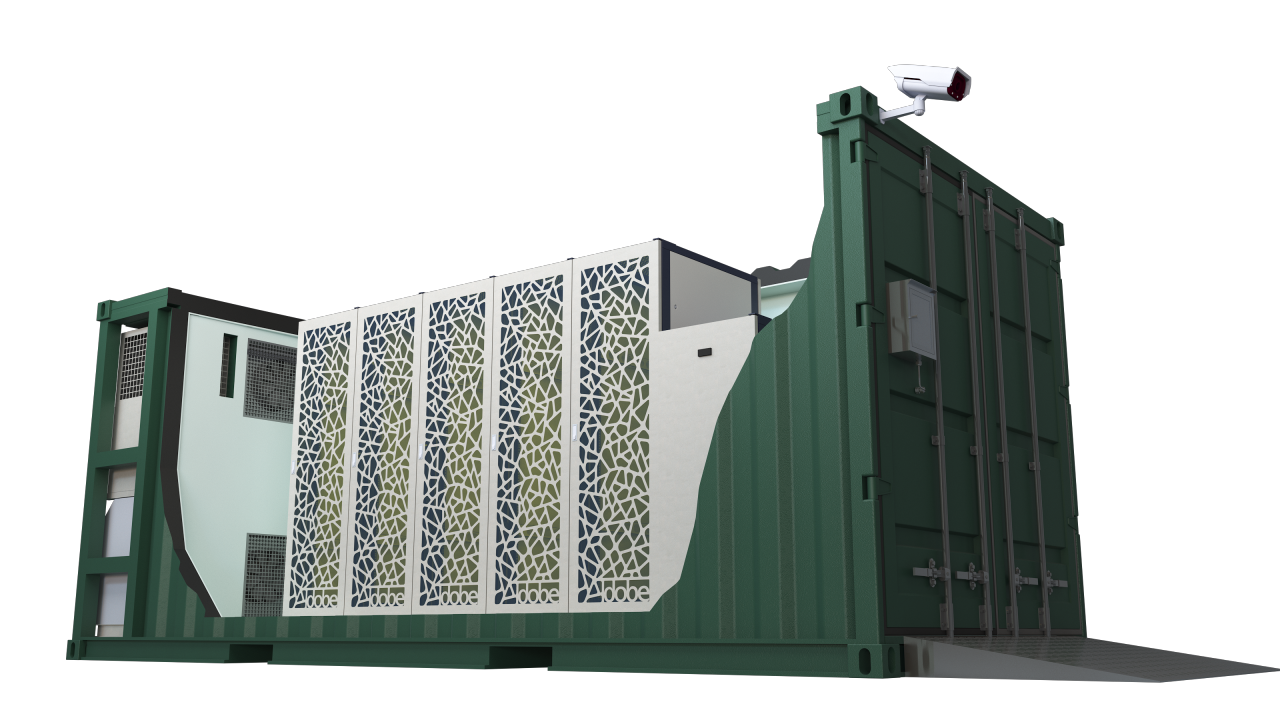

BESS 20ft Container
